U.S. BATTERY– 100% Made in the U.S.A

The U.S. Battery Company is celebrating over 90 years of manufacturing the highest quality deep-cycle batteries in the world. U.S. Batteries are built with Xtreme Capacity 2TM formulation and Diamond Plate Technology®, providing the highest total energy delivered across the battery’s lifetime.

R&J Batteries is proudly the exclusive U.S. Battery distributor for Australia and New Zealand. Our company-owned branches and 8000+ stockists supply the complete deep-cycle range of 6-volt, 8-volt & 12-volt batteries suitable for: golf carts, electric vehicles, floor machines, hire & rental equipment, renewable energy and marine or recreational vehicle applications.



U.S Battery Technology Applications Product data sheets

U.S. Battery – Deep-Cycle Batteries

U.S. Battery Company has been building flooded lead acid batteries since 1926 and are 100% manufactured in the USA including the 6-volt, 8-volt & 12-volt deep cycle range.

These deep-cycle batteries are built with Xtreme Capacity 2 (XC2) Diamond Plate Technology making U.S. Batteries the best choice for applications where batteries are subjected to deep discharge and fast recharge on a daily or regular basis.

This new technology consists of synthetic tetrabasic lead sulphate (TTBLS) additive in the paste mix which provides controlled crystal sizes and results in the enhanced performance, charging and life characteristics of U.S. Battery’s deep-cycle products.



U.S. Battery’s Xtreme Capacity Diamond Plate Technology provides:

Increased Initial Capacity
Synthetic TTBLS (tetrabasic lead sulfate) additive in the paste mix provides uniformly controlled crystal size of the resulting TTBLS in the cured plate and higher conversion efficiency of TTBLS to lead dioxide in the formed positive plate giving higher capacity.



Higher Peak Capacity
The same controlled TTBLS crystal size results in a higher conversion of TTBLS to lead dioxide in the cycled positive plate with greater and more uniform porosity and surface area for higher peak capacity.



Improved Energy Density and Specific Energy
Since there is no increase in the size or weight of the battery, higher capacity translates to improved energy density (watt-hours/liter) and specific energy (watt-hours/kilogram).



Enhanced Recharge-ability
The more uniform crystal structure of the formed positive plate results in enhanced recharge-ability particularly at low temperature and from varying states of discharge.



Fortified Plate Construction
Improved Vibration and Shock Resistance. The more uniformly controlled TTBLS crystal size results in a stronger crystal network within the formed positive plate active material resulting in decreased shedding from vibration and shock.



Improved Life Cycle
The stronger crystal network within the formed positive plate active material also results in decreased shedding from deep cycling – the primary failure mode in deep cycle batteries.

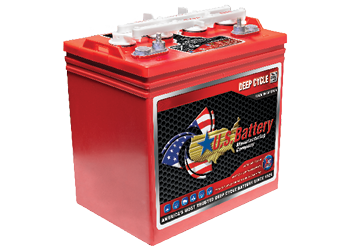

Golf Cart & Utility

Battery powered golf cars and electric vehicles have unique power requirements that U.S. Battery understands.

US battery for golf cart

Maintaining peak capacity for longer periods between charges, means greater vehicle reliability and lower annual operating costs. This is why U.S. Battery Electric Vehicle Deep Cycle Batteries are engineered with the company’s exclusive XC2™ formulation and Diamond Plate Technology®. This creates the industry’s most efficient battery plates, delivering greater watt-hours per litre and watt-hours per kilogram than any other flooded lead-acid battery in the market.

  • Manufactured in the U.S.A
  • XC2™ Formulation
  • Diamond Plate Technology®
  • Rugged Construction
  • SpeedCap® Venting Positive Locking System

Aerial Work Platforms

Scissor Lifts and other Aerial Work Platforms (AWP) require an efficient and reliable power source that U.S. Battery products can easily provide.US Battery Aerial worl platforms

US Battery Deep Cycle batteries are engineered with our exclusive XC2  and Diamond Plate Technology. These features produce Aerial Work Platform Deep Cycle Batteries capable of maintaining peak capacity for longer periods between charges, delivering the highest total energy over the life of the batteries while lowering operating costs. These technologies also result in the industry’s most efficient battery plates, transmitting greater watt-hours per litre and watt-hours per kilogram than any other flooded lead-acid battery on the market.

  • Higher initial capacity & faster cycle-up (as few as 25 cycles to rated capacity)
  • Improved energy density (Watt-hr/Liter) and specific energy (Watt-hr/Kilogram)
  • Enhanced recharge-ability; costs less to charge
  • Fortified plate construction provides a stronger crystal network for decreased shedding of positive plates



Also suitable for: Electric Trolling Motors, Marine & RV House Power, Camping, Off Grid Cabins,
Remote Power, UPS Systems, Pumps, Dual Battery Kits, Electric Vehicles, Roadside Signs/Arrow Boards.

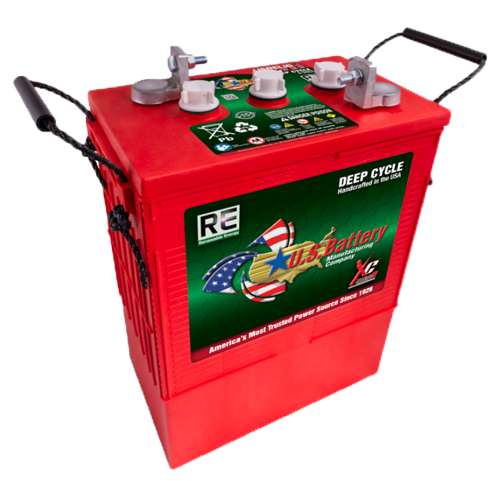

Solar & Renewable Energy Storage

RE Series batteries are designed to provide the highest peak capacity, longest cycle life, and greatest reliability for powering your off-grid locations, or those connected to the grid and needing backup power, energy storage and self-consumption.

Solar & Renewable Energy StorageRenewable Energy Series batteries utilize the company’s exclusive XC2™ formulation and Diamond Plate Technology® to create the industry’s most efficient battery plates, delivering greater watt-hours per liter and watt-hours per kilogram than any other flooded lead-acid battery in the market. With a wide range of storage capacities including 2, 4, 6, 8 & 12-volt Deep Cycle options we can ensure you get the right energy storage solution for your renewable energy & battery storage requirements.

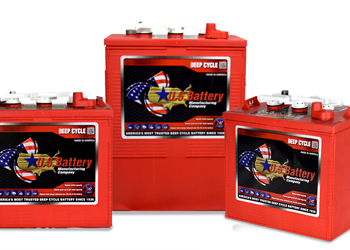

Sizes include;

  • Group 24, 27 & 31,
  • GC2, GC8,
  • J250, J305, L16, J185 and more.

Warranties

R&J Batteries distribute U.S. Battery exclusively in Australia and New Zealand across our vast distribution network and company-owned branches. We pride ourselves on supplying the best quality products and services, which is why in 2016 we added world leading U.S. Battery products to our portfolio. Since then our partnership with U.S. Battery Company has prospered and R&J Batteries is now the proud exclusive distributors in these areas.



For more information on R&J Batteries and our U.S. Battery Deep-Cycle products, please get in touch with us by calling your closest store on 1300 769 282 or by heading to our contact page.
