Lester Electrical SSII-650W and SSII-1050W battery chargers

Share this page

Lester chargers have landed! R&J Batteries are excited to announce a new addition of products to our already extensive range of batteries, lubricants and accessories and we are the official and sole full range importer of Lester Electrical battery chargers in both Australia and New Zealand.



R&J Batteries pride themselves on offering customers high quality, world leading brands. Our range of battery accessories is no exception as we introduce the Summit Series II 1050W (SSII-1050W) and the Summit series II 650W (SSII-650W) to our already comprehensive range of brands.



Lester Electrical specialises in electrical power conversion and storage. Over the past 55 years, they have created products of unrivalled quality, reliability and longevity, even in the most demanding of applications and environments.



Lester Logo



Applications

Golf Cars
Aerial Work Platforms
Floor Care Machines
Industrial Vehicles
Lift Trucks
Outdoor Power Equipment



Lester Summit Series II

The Summit Series II chargers include the comprehensive features and benefits that combine to provide you with the best performance.



Bluetooth – Wireless communication allows you to view the status of the charge cycle, select the active battery profile, upload new profiles, charge between onboard and off-board and download charge history records anytime using smartphones or tablets.



Performance – Proprietary progressive DV/DT™ charge algorithm ensures a precisely charged battery every time. Chargers are built to last and are tested in the most extreme conditions.



Efficiency – Switch mode chargers have best-in-class efficiency and are compliant with the newest CEC and DOE standards.



Cloud connectivity
 – Push charge histories to the cloud and access the data anywhere any time. Add new profiles to your chargers by pulling information from the cloud.



Expertise –
Lester is proudly an employee-owned company, with every member of the team investing in the quality delivered to customers.



Flexibility – Universal AC input and external DC and signal connectors allow for easy customisation and use worldwide.

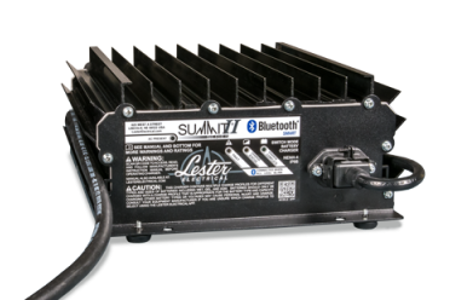

Summit Series II 1050W

SSII-1050W



AC Input

Voltage range, rated 100-240 Vac
Voltage range, rated 85-265 Vac(<108 Vac: reduced power)
Protection Current limit, surge, transient, under voltage, over voltage
Phase Single-phase
Frequency, rated 50-60 Hz
Frequency, rated 45-65 Hz
Efficiency > 91% peak, CEC test procedure, 115 Vac, AC and DC losses included
Current, maximum < 12 A

DC Output

Power 1050 W
Voltage, nominal 24 Vdc 36 Vdc 48 Vdc
Voltage, maximum 36 Vdc 54 Vdc 72 Vdc
Current, maximum 25 A 25 A 22 A
Voltage, min start-up 10 Vdc
Battery types Lead-acid (Wet / AGM / Gel), lithium, custom
Protection Current limit, surge, transient, under voltage, over voltage

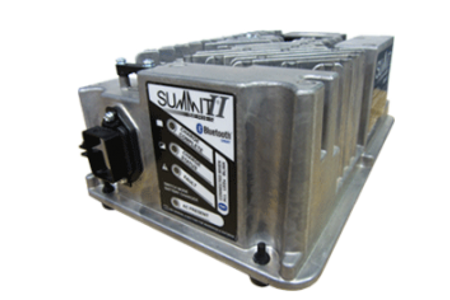

Summit Series II 650W

SSII-650W



AC Input

Voltage range, rated 100-240 Vac
Voltage rage, operating 85-265 Vac(<108 Vac: reduced power)
Frequency, rated 50-60 Hz
Frequency, operating 45-65 Hz
Phase Single-phase
Current, maximum < 8 A
Efficiency > 90% peak, CEC test procedure, 115 Vac, AC and DC losses included
Protection Current limit, surge, transient, under voltage, over voltage

DC Output

Power 650 W
Voltage, nominal 24 Vdc 36 Vdc 48 Vdc
Voltage, maximum 36 Vdc 54 Vdc 72 Vdc
Current, maximum 27 A 18 A 13.5 A
Voltage, min start-up 10 Vdc
Battery types Lead-acid (Wet / AGM / Gel), lithium, custom
Protection Current limit, short circuit, reverse polarity, under voltage, over voltage, wrong battery voltage

Lester Chargers are now available from your local R&J Batteries Store. Please get in touch to discuss our range of Lester Charger.
