Fullriver HGL Battery Series

Home Back to Products Fullriver HGL Battery Range

Share this page

Overview

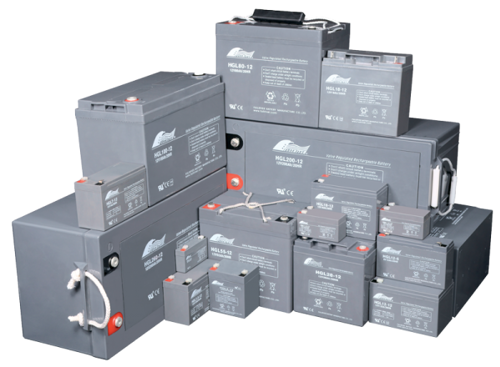

Fullriver HGL series valve-regulated lead acid batteries are designed with AGM (Absorbent Glass Mat) technology and for general application purposes, such as UPS, telecom, and electrical utilities.

HGL batteries are sealed maintenance free, non-hazardous and non-spillable so provide you with a cleaner, greener alternative. AGM technology improves performance and increases vibration resistance.

Fullriver – Your Clean – Green Energy Solution

HGL batteries

DOWNLOAD Fullriver HGL Series Battery Brochure

Applications

  • Alarm systems
  • Electronic cash register
  • Vending machines
  • Toys
  • Emergency lightning system
  • Medical equipment

Benefits

  • Sealed construction, non-spillable
  • Maintenance free operation, no need to add water
  • Low self-discharge, below 3% per month at 25C
  • Special lead-calcium alloy, high corrosion resistance
  • High Capacity retention in standby and cycling applications
  • FAA and IATA approved as non-hazardous
  • CSIRO approved for fire panels and systems

Battery Specifications

Click on part numbers below for more correlating product data sheet

Part Number Voltage Capacity L W H H Total Weight
HGL1.3-6 6 1.3 ah 97 24 52 58 0.3
HGL3.3-6 6 3.3 ah 134 34 61 67 0.6
HGL5-6A 6 5 ah 70 47 101 107 0.8
HGL5-6B 6 5 ah 67 67 97 115 0.9
HGL7-6 6 7 ah 151 34 95 101 1.1
HGL12-6 6 12 ah 151 50 95 101 1.8
HGL14-6TS 6 14 ah 108 71 140 140 2.28
HGL1.3-12 12 1.3 ah 97 43 52 58 0.6
HGL2.3-12A 12 2.3 ah 177 35 61 67 0.6
HGL2.9-12 12 2.9 ah 80 55 98 104 1.1
HGL3.3-12 12 3.3 ah 134 67 61 67 1.1
HGL5-12 12 5 ah 90 70 101 107 1.4
HGL7.2-12 12 7.2 ah 151 65 95 101 2.2
HGL10-12 12 10 ah 151 65 111 117 3.2
HGL12-12 12 12 ah 151 99 95 101 3.6
HGL18-12 12 18 ah 181 77 167 167 5.3
HGL22-12 12 22 ah 181 77 167 167 5.8
HGL26-12B 12 26 ah 165 176 125 125 7.8
HGL28-12 (HGL26-12A) 12 28 ah 166 126 174 174 8.3
HGL35-12 12 35 ah 196 131 155 167 10.3
HGL45-12 12 45 ah 198 166 174 174 13.5
HGL70-12 (DIN) 12 70 ah 351 167 176 176 20.5
HGL80-12 12 80 ah 260 169 211 215 22.3
HGL100-12C 12 100 ah 307 169 211 215 28.2
HGL120-12B 12 120 ah 331 175 214 218 32
HGL200-12 12 200 ah 530 209 214 218 57.6
HGL260-12 12 260 ah 521 269 220 224 72.5
